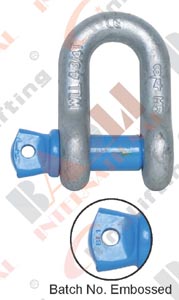

US TYPE HIGH TENSILE FORGED SHACKLE G210 S210 21108 21109 21110 21111 21112 21113 21114 21115 21116 Admin Edit
Screw pin and round pin chain shackles meet The Requirements of US Federal Specification RR-C-271 Type IVB. Class 2. Grade A. |
ITEM NO | Nominal Size | Working Load Limit | Dimensions(mm) | Weight each | |||||||||
(in.) | (tons) | A | B | C | D | E | F | G | H | I | M | (kg) | |
21101 | 1/4 | 1/2 | 11.9 | 7.85 | 6.35 | 6.35 | 24.6 | 15.5 | 22.4 | 40.4 | 4.85 | 35.1 | 0.05 |
21102 | 5/16 | 3/4 | 13.5 | 9.65 | 7.85 | 7.85 | 29.5 | 19.1 | 26.2 | 48.5 | 5.60 | 42.2 | 0.08 |
21103 | 3/8 | 1 | 16.8 | 11.2 | 9.65 | 9.65 | 35.8 | 23.1 | 31.8 | 58.5 | 6.35 | 51.5 | 0.13 |
21104 | 7/16 | 1-1/2 | 19.1 | 12.7 | 11.2 | 11.2 | 41.4 | 26.9 | 36.6 | 67.5 | 7.85 | 60.5 | 0.20 |
21105 | 1/2 | 2 | 20.6 | 16.0 | 12.7 | 12.7 | 46.0 | 30.2 | 41.4 | 77.0 | 9.65 | 68.5 | 0.27 |
21106 | 5/8 | 3-1/4 | 26.9 | 19.1 | 15.7 | 16.0 | 58.5 | 38.1 | 51.0 | 95.5 | 11.2 | 85.0 | 0.57 |
21107 | 3/4 | 4-3/4 | 31.8 | 22.4 | 20.6 | 19.1 | 70.0 | 46.0 | 60.5 | 115 | 12.7 | 101 | 1.20 |
21108 | 7/8 | 6-1/2 | 36.6 | 25.4 | 24.6 | 22.4 | 81.0 | 53.0 | 71.5 | 135 | 12.7 | 114 | 1.43 |
21109 | 1 | 8-1/2 | 42.9 | 28.7 | 25.4 | 25.4 | 93.5 | 60.5 | 81.0 | 151 | 14.2 | 129 | 2.15 |
21110 | 1-1/8 | 9-1/2 | 46.0 | 31.8 | 31.8 | 28.7 | 103 | 68.5 | 91.0 | 172 | 16.0 | 142 | 3.06 |
21111 | 1-1/4 | 12 | 51.5 | 35.1 | 35.1 | 31.8 | 115 | 76.0 | 100 | 191 | 17.5 | 156 | 4.11 |
21112 | 1-3/8 | 13-1/2 | 57.0 | 38.1 | 38.1 | 35.1 | 127 | 84.0 | 111 | 210 | 19.1 | 174 | 5.28 |
21113 | 1-1/2 | 17 | 60.5 | 41.4 | 41.1 | 38.1 | 137 | 92.0 | 122 | 230 | 20.6 | 187 | 7.23 |
21114 | 1-3/4 | 25 | 73.0 | 51.0 | 54.0 | 44.5 | 162 | 106 | 146 | 279 | 25.4 | 231 | 12.1 |
21115 | 2 | 35 | 82.5 | 57.0 | 51.0 | 51.0 | 184 | 122 | 172 | 312 | 31.0 | 263 | 19.2 |
21116 | 2-1/2 | 55 | 105 | 70.0 | 66.5 | 66.5 | 238 | 145 | 203 | 377 | 35.1 | 330 | 32.5 |
