TROLLEY F TYPE GEARED (DOUBLE BEAM) 01277A 01278A 01279A 01280A 01270A 01269A Admin Edit

01271A 01272A 01273A 01274A 01275A 01276A 01277A 01278A 01279A 01280A 01270A 01269A

Previous 1 ... 6 7 8 9 10 11 12 Next

Product Description


TROLLEY F TYPE GEARED (DOUBLE BEAM) 01277A 01278A 01279A 01280A 01270A 01269A

TROLLEY F TYPE GEARED (DOUBLE BEAM) 01277A 01278A 01279A 01280A 01270A 01269A















Item No.

01271A

01272A

01273A

01274A

01275A

01276A

01277A

01278A

01279A

01280A

01270A

01269A

Capacity    load(T)

0.5

1

1.5

2

3

5

8

10

16

20

30

40

Test    load(kN)

7.35

14.71

22.06

29.42

44.13

61.29

98.06

122.58

196.12

245.17

367.74

490.34

Running    height(N)

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

3

Force
(N)

25

50

70

90

95

140

200

240

240

250

250

320

Min.radius of curve(m)

0.8

0.9

1

1

1.2

1.3

2

2

3.5

3.5

6

7

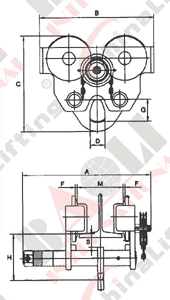

Dimensions

(mm)

Aa

270

334

337

343

357

373

400

406

498

501

-

-

b

322

436

439

445

459

475

502

508

602

604

674

758

B

194

236

250

268

322

362

426

442

555

555

710

800

C

176

196

210

225

266

301

388

396

498

498

608

748

H

75

96

102

109

124

142

195

190

236

233

285

388

S

30

38

38

38

40

42

45

45

65

58

65

77

O

28

32

36

42

52

62

72

72

95

95

105

165

G

32

40

45

52

63

74

110

110

135

135

155

250

F

1.5-3

1.5-3

1.5-3

1.5-3

1.5-3

1.5-3

2-3.5

2-3.5

2-3.5

2-3.5

2-3.5

2-3.5

I beam width range(mm)Ma

50-152

64-203

74-203

88-203

100-203

114-203

124-203

124-203

136-203

136-203

-

-

b

50-203

64-305

74-305

88-305

100-305

114-305

124-305

124-305

136-305

136-305

175-305

190-320
