L2 TYPE GEARED TROLLEY Admin Edit
| ITEM NO | 01281A | 01282A | 01283A | 01284A | 01285A | 01286A | ||
| Capacity ton | 0.5 | 1 | 1.5 | 2 | 3 | 5 | ||
| Test load | KN | 7.35 | 14.71 | 22.06 | 29.42 | 44.13 | 61.29 | |
| Running height | m | 3 | ||||||
| Chain pull to lift full load | Kg | 25 | 50 | 70 | 90 | 95 | 140 | |
| Min. radius curve | m | 0.85 | 1.0 | 1.1 | 1.1 | 1.3 | 1.4 | |

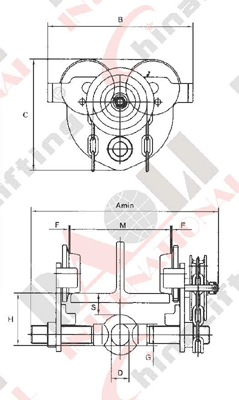

| Dimensions (mm) | A | a | 284 | 302 | 302 | 314 | 328 | 346 |
| b | ― | 388 | 388 | 400 | 415 | 432 | ||
| B | 206 | 252 | 265 | 276 | 335 | 377 | ||
| C | 156 | 190 | 212 | 222 | 258 | 284 | ||
| H | 74 | 90 | 106 | 106 | 121 | 136 | ||
| S | 30 | 38 | 38 | 38 | 40 | 42 | ||
| D | 25 | 30 | 40 | 40 | 46 | 52 | ||
| G | 30 | 36 | 48 | 48 | 58 | 6 | ||
| F | 1.5-3 | |||||||
| I-beam width range(mm) M | normal | 50-220 | 58-220 | 66-220 | 66-220 | 74-220 | 90-220 | |
| long | ― | 165-305 | 165-305 | 165-305 | 178-305 | 178-305 | ||
