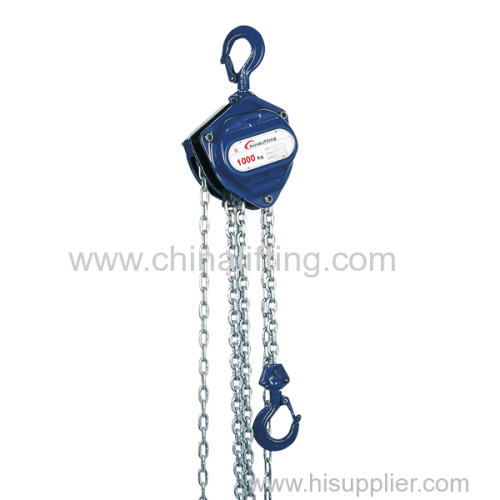

HS-B TYPE(HEAVY DUTY) 01078 01079 Admin Edit
,
All structural parts made of high quality steel
,Alloy steel hooks(35CrMo)
,Gear made of alloy steel(20CrMnTi)
,Strong nut
,Hollow structure increase strength
,Safety latches made of casting steel
,All major components are strictly heat treated
,Load chain made by GERMAN machine
| ITEM NO | 01071 | 01072 | 01074 | 01075 | 01076 | 01077 | 01078 | 01079 | |
| Capacity | t | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 |
| Standard lift | m | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Running test load | N | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 6.25 | 12.5 | 25 |
| Headroom(drawn close-up)Hmin | mm | 271 | 400 | 453 | 420 | 620 | 704 | 720 | 1000 |
| Effort required to lift max.load | N | 221 | 304 | 343 | 314 | 343 | 382 | 392 | 392 |
| No.of colums of load chain | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
| Load chain dia. | mm | 6x18 | 6x18 | 8x24 | 6x18 | 8x24 | 10x30 | 10x30 | 10x30 |

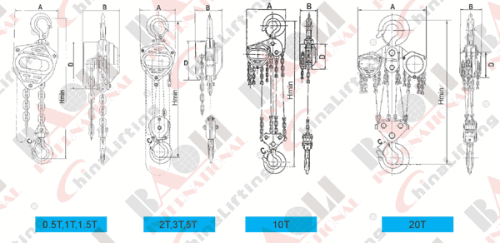

| Dimensions (mm) | A | 138 | 164 | 198 | 164 | 198 | 228 | 367 | 598 |
| B | 114 | 124 | 142 | 124 | 142 | 167 | 167 | 200 | |
| C | 21.5 | 27 | 30 | 30 | 37 | 46 | 54 | 65 | |
| D | 145 | 182 | 219 | 182 | 219 | 252 | 252 | 252 | |
