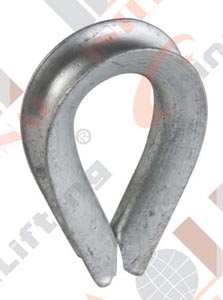

HEAVY-DUTY THIMBLES DIN 3090 28039 28040 28041 28042 28043 28044 28045 28046 28047 28048 28049 Admin Edit

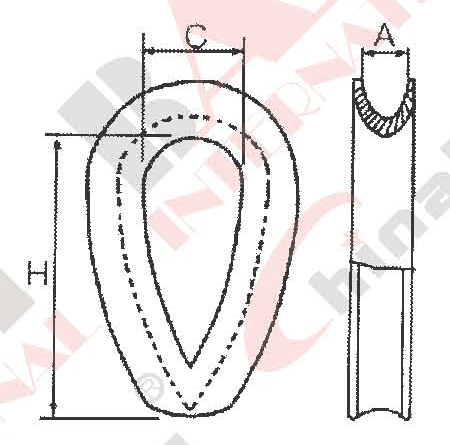

ITEM NO | SIZE | A | H | C |
mm | mm | mm | mm | |
28032 | 4 | 5 | 29 | 10 |
28033 | 6 | 7 | 42 | 15 |
28034 | 8 | 9 | 56 | 20 |
28035 | 10* | 11 | 70 | 25 |
28036 | 12 | 13 | 85 | 30 |
28037 | 14 | 16 | 102 | 35 |
28038 | 16 | 18 | 113 | 40 |
28039 | 18 | 20 | 127 | 45 |
28040 | 20 | 22 | 141 | 50 |
28041 | 22 | 24 | 153 | 55 |
28042 | 24 | 26 | 165 | 60 |
28043 | 26 | 29 | 181 | 65 |
28044 | 28 | 31 | 193 | 70 |
28045 | 32 | 35 | 223 | 80 |
28046 | 36 | 40 | 247 | 90 |
28047 | 40 | 44 | 281 | 100 |
28048 | 44 | 48 | 305 | 110 |
28049 | 48 | 53 | 329 | 120 |
