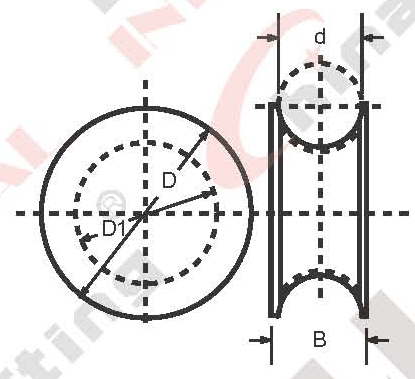

ITEM NO

Nominal    Size (Rope Dia)d

B

D

D1

mm

in

mm

mm

mm

23501

8

5/16

11

22

12

23502

10

7/16

13

28

16

23503

12

1/2

15

34

18

23504

14

9/16

17

38

20

23505

16

5/8

19

42

23

23506

18

3/4

21

50

26

23507

20

13/16

23

55

28

23508

22

7/8

25

60

30

23509

24

1"

27

65

34

23510

26

1-1/16

30

70

36

23511

28

1-1/8

32

75

40

23512

30

1-3/16

34

80

42

23513

32

1-1/4

36

86

44

23514

35

1-3/8

41

92

48

23515

40

1-9/16

46

105

55
