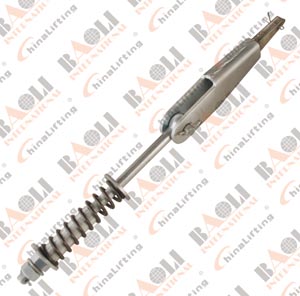

ROPE SUSPENSIONS WITH ROPE SOCKETS ACC. TO DIN 15315 (EN13411-7) 17078 17079 17080 17081 Admin Edit

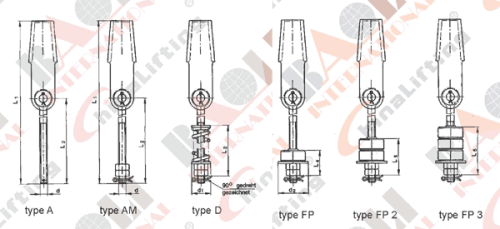

| The surface of the rope sockets is galvanized. | |||||||||
Item No | rope | type A | type AM | d | L 1 | L2 | type D | d 1 | L3 |
size(mm) | size(mm) | size(mm) | (mm) | (mm) | (mm) | size(mm) | (mm) | (mm) | |
5 | M 10 | 276 | 180 | 5 | 23 | 85.5 | |||
17071 | 5-6.5 | 6.5 | 6.5 | M 10 | 265 | 180 | 6.5 | 23 | 85.5 |
17072 | 6-8 | 8 | 8 | M 12 | 450 | 320 | 8 | 44 | 167.0 |
17073 | 9-11 | 11 | 11 | M 16 | 484 | 320 | 11 | 44 | 173.0 |
17074 | 12-14 | 14 | 14 | M 20 | 598 | 400 | 14 | 53 | 201.5 |
17075 | 15-17 | 17 | 17 | M 24 | 674 | 450 | 17 | 65 | 248.0 |
17076 | 18-20 | 20 | 20 | M27 | 760 | 500 | 20 | 65 | 254.0 |
Item No. | rope | type FP | d2 | L4 | type FP 2 | L5 | type FP 3 | L6 | |
size(mm) | size(mm) | (mm) | (mm) | size(mm) | (mm) | size(mm) | (mm) | ||
17078 | 6-8 | 8 | 50 | 51 | 8 | 79 | 8 | 107 | |
17079 | 9-11 | 11 | 58 | 59 | 11 | 87 | 11 | 115 | |
17080 | 12-14 | 14 | 68 | 65 | 14 | 93 | 14 | 121 | |
17081 | 15-17 | 17 | 80 | 74 | 17 | 102 | 17 | 130 | |
