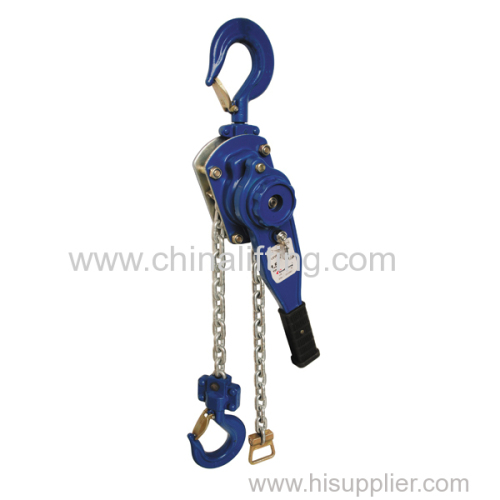

HSH-K Type Admin Edit
| |||||||||
Item No. | 01211 | 01212 | 01213 | 01214 | 01215 | 01216 | 01217 | ||
Capacity | kg | 750 | 1000 | 1500 | 2000 | 3000 | 6000 | 9000 | |
Lift | m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
Test Load | kg | 1125 | 1500 | 2250 | 3000 | 4500 | 9000 | 13500 | |
Pull on lever to lift full load | N | 290 | 300 | 370 | 395 | 380 | 390 | 400 | |
No.of load chain falls | 1 | 1 | 1 | 1 | 1 | 2 | 3 | ||
Diameter of load chain | mm | 5.6 | 6 | 7 | 8 | 10 | 10 | 10 | |
Min.distance between hooks:H | mm | 330 | 365 | 400 | 445 | 520 | 640 | 830 | |
Length of lever handle:D | mm | 250 | 250 | 300 | 300 | 370 | 370 | 370 | |

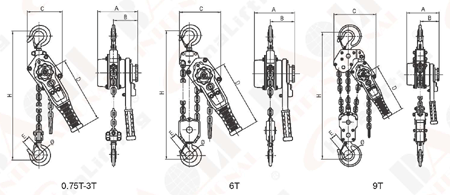

Dimensions mm | A | 152 | 157 | 178 | 186 | 206 | 206 | 206 | |
B | 91.5 | 94 | 104 | 110 | 118 | 118 | 118 | ||
C | 132 | 140 | 145 | 152 | 199 | 230 | 338 | ||
35.5 | 37.5 | 42.5 | 45 | 50 | 53 | 67 | |||
E | 26 | 27.5 | 31 | 33 | 37 | 40 | 50 |
