Product Description

G80 MASTER LINK WITH FLAT(WELDED) 25828 25829 25830 25831 25832 25833 25834 25835 25836 25837 25838 25839









ITEM NO

CODE

WLL

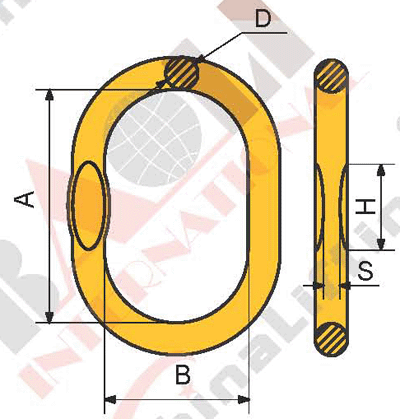

Dimesions(mm)

N.W.



T

A

B

D

S

H

KG

25821

13B5

2.6

95

51

13

7

50

0.3

25822

13B6

2.4

115

60

13

7

50

0.35

25823

16B6

3.8

120

70

16

9

70

0.6

25824

16B7

2.8

190

100

16

9

70

0.86

25825

20B6

6.4

150

80

20

11

50

1.1

25826

20B7

5.8

170

90

20

11

70

1.25

25827

22B6

7.6

170

90

22

12

70

1.53

25828

22B7

6.4

210

110

22

12

70

1.83

25829

25B6

10

190

100

25

13

80

2.21

25830

28B6

12.7

210

110

28

15

80

3.06

25831

28B7

10.5

270

140

28

15

70

3.81

25832

32B6

15.2

270

140

32

17

70

5.05

25833

38B6

25.1

270

140

38

20

55

7.3

25834

38B7

17

420

220

38

20

55

10.78

25835

45B6

34

320

170

45

24

60

12.2

25836

45B7

24.5

470

250

45

24

60

17.06

25837

50B6

40

380

200

50

-

-

17.65

25838

60B6

58

430

220

60

-

-

28.85

25839

70B6

84

500

250

70

-

-

45.48
