G80 EYE SELF-LOCKING HOOK 25008 25009 Admin Edit

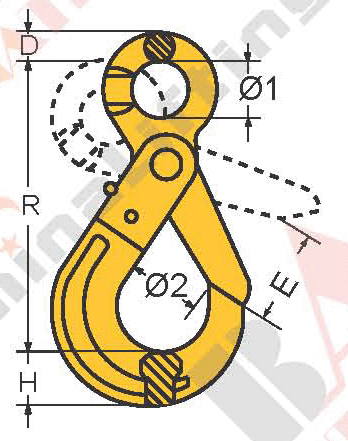

ITEM NO | SIZE | W.L.L. | 1 | R | D | 2 | H | E | N.W. |
mm | (t) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (KG) | |
25001 | 6-8 | 1.12 | 22 | 110.5 | 10 | 34 | 19.5 | 28 | 0.5 |
25002 | 7/8-8 | 2 | 25 | 136 | 12 | 46 | 24 | 34 | 0.8 |
25003 | 10-8 | 3.15 | 32 | 171 | 15 | 56 | 28.5 | 44 | 1.55 |
25004 | 13-8 | 5.3 | 40.5 | 208.5 | 19.5 | 69 | 40 | 52 | 3.2 |
25005 | 16-8 | 8 | 56 | 257.5 | 22 | 86 | 50.5 | 60 | 5.74 |
25006 | 20-8 | 12.5 | 64.5 | 275 | 27 | 100 | 55 | 81 | 8.5 |
25007 | 22-8 | 15 | 70 | 320 | 30 | 98 | 67 | 82 | 13 |
25008 | 26-8 | 21.2 | 80 | 363 | 34 | 110 | 75 | 110 | 18 |
25009 | 32-8 | 31.5 | 105 | 472 | 45 | 166 | 97 | 168 | 44.5 |
