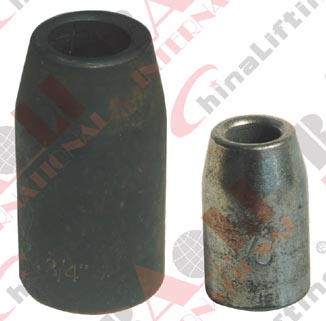

FLEMISH EYE STEEL SWAGING SLEEVES(S-505) 17107 17108 17109 17110 17111 17112 17113 17114 17115 17116 17117 17118 17119 Admin Edit

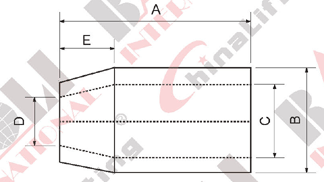

| Our modern in house forging, heat treatment, sand blasting, auto-marking facilities assures the consistent quality of Flemish eye steel sleeves from 1/4" to 6". ( galvanized and self-colored) | ||||||||
| Item NO. | FOR WIRE | DIMENSION? | MAX.AFTER | N.W. | ||||
ROPE SIZE | (inch) | SWAGE? | ? (100PCS) | |||||
(inch) | A | B | D | E | C | inch | Kg | |
| 17101 | 1/4" | 1 | 0.66 | 0.31 | 0.28 | 0.47 | 0.57 | 2.27 |
| 17102 | 5/16" | 1.5 | 0.91 | 0.38 | 0.44 | 0.62 | 0.75 | 6.36 |
| 17103 | 3/8" | 1.5 | 0.91 | 0.47 | 0.39 | 0.66 | 0.75 | 6.36 |
| 17104 | 7/16" | 2 | 1.22 | 0.53 | 0.65 | 0.85 | 1.01 | 15 |
| 17105 | 1/2" | 2 | 1.22 | 0.63 | 0.56 | 0.91 | 1.01 | 13 |
| 17106 | 9/16" | 2.75 | 1.47 | 0.7 | 0.63 | 1.03 | 1.24 | 29 |
| 17107 | 5/8" | 2.75 | 1.47 | 0.75 | 0.63 | 1.09 | 1.24 | 26 |
| 17108 | 3/4" | 3.19 | 1.72 | 0.91 | 0.84 | 1.28 | 1.46 | 40 |
| 17109 | 7/8" | 3.56 | 2.03 | 1.03 | 1 | 1.53 | 1.68 | 60 |
| 17110 | 1" | 4 | 2.28 | 1.16 | 1.13 | 1.72 | 1.93 | 89 |
| 17111 | 1-1/8" | 4.8 | 2.5 | 1.28 | 1.25 | 1.94 | 2.13 | 118 |
| 17112 | 1-1/4" | 5.19 | 2.78 | 1.44 | 1.41 | 2.16 | 2.32 | 161 |
| 17113 | 1-3/8" | 5.81 | 3 | 1.56 | 1.56 | 2.38 | 2.52 | 192 |
| 17114 | 1-1/2" | 6.25 | 3.25 | 1.69 | 1.69 | 2.63 | 2.71 | 227 |
| 17115 | 1-3/4" | 7.25 | 3.84 | 1.94 | 1.97 | 3.13 | 3.1 | 366 |
| 17116 | 2" | 8.5 | 4.38 | 2.25 | 2.25 | 3.63 | 3.56 | 514 |
| 17117 | 2-1/4" | 9.56 | 5.03 | 2.5 | 2.53 | 4.03 | 4.12 | 879 |
| 17118 | 2-1/2" | 10.5 | 5.5 | 2.75 | 2.81 | 4.50 | 4.5 | 1068 |
| 17119 | 2-3/4" | 11.5 | 5.75 | 3 | 3.09 | 4.75 | 4.7 | 1271 |
| 17120 | 3" | 12 | 6 | 3.25 | 3.38 | 5 | 4.96 | 1335 |
| 17121 | 3-1/4" | 13 | 6.5 | 3.86 | 3.54 | 5.43 | 5.37 | 1650 |
| 17122 | 3-1/2" | 14 | 7 | 3.88 | 3.94 | 5.84 | 5.77 | 2106 |
| 17123 | 3-3/4" | 15 | 7.5 | 4.06 | 4.25 | 6.31 | 6.23 | 2497 |
| 17124 | 4" | 16 | 8.13 | 4.38 | 4.50 | 6.81 | 6.69 | 3087 |
| 17125 | 4-1/2" | 18 | 9.13 | 4.88 | 5.06 | 7.66 | 7.45 | 4540 |
| 17126 | 5" | 20 | 10.52 | 5.5 | 5.63 | 8.73 | 8.28 | 6600 |
| 17127 | 6" | 24 | 12.54 | 6.5 | 6.75 | 10.2 | 9.93 | 12300 |
| Recommended to be used with 6x19, 6x25, 6x29, 6x37 IPS or XIP(EIP), FC or IWRC wire rope. If using with any other type of construction or grade of wire rope, it is recommended to make the breaking load test of the swaged termination to prove the adequacy of the assembly to be manufactured. |
