PALLET CLAMP Admin Edit

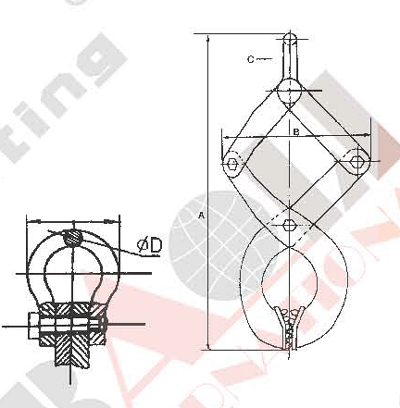

| ITEM NO | 01761 | 01762 | 01763 | 01764 | |
| CAP. | t | 1 | 1.5 | 2 | 2.5 |
| Beam Width | mm | 30-100 | 30-180 | 30-200 | 30-135 |
| A max | mm | 412 | 520 | 552 | 485 |
| A min | mm | 260 | 310 | 340 | 236 |
| B max | mm | 310 | 335 | 390 | 336 |
| B min | mm | 258 | 245 | 310 | 275 |
| C | mm | 72 | 86 | 86 | 95 |
| D | mm | 16 | 20 | 20 | 22.5 |
