TROLLEY CLAMP B TYPE (Large Ring) Admin Edit
| Item No | 01792A | 01793A | 01794A | 01795A | 01796A | |
| Capacity/td> | ton | 1 | 2 | 3 | 5 | 10 |
| Test load/td> | kN | 14.71 | 29.42 | 44.13 | 61.29 | 122.58 |
| Min.radius of curve | M | 1.0 | 1.1 | 1.3 | 1.4 | 2.0 |

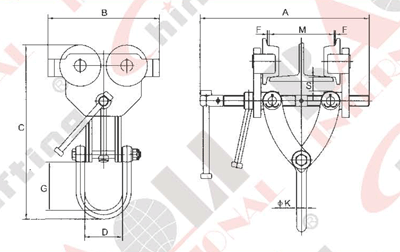

| ?imensions?? (mm) | A | 325 | 325 | 342 | 480 | 480 |
| B | 236 | 280 | 345 | 377 | 450 | |
| Cmin | 310 | 360 | 418 | 458 | 603 | |
| max | 360 | 405 | 460 | 532 | 655 | |
| D | 74 | 80 | 105 | 129 | 165 | |
| G | 82 | 83 | 101 | 101 | 163 | |
| S | 48 | 42 | 58 | 50 | 52 | |
| K | 16 | 22 | 27 | 34 | 45 | |
| F | 1.5-3 | 2-3.5 | ||||
| I-beam width range mm | M | 64-203 | 76-203 | 82-203 | 100-305 | 136-305 |
