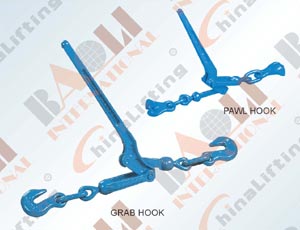

LEVER TYPE LOAD BINDER WITH GRAB HOOK 01363A 01364A Admin Edit
| Safety,durability designed for all heavy duty transport use. (take up slack and apply tension to a tie down system) Drop forged steel,high strength. Free 360 degree swivel hooks for easier handling. Heat treated for extra strength. Extra heavy construction at leverage point to prevent spreading. eel of binder toggles away from load, permiting easy release. Each binder individually proof tested.
|
| LEVER TYPE LOAD BINDER WITH GRAB HOOK | |||||||||||||

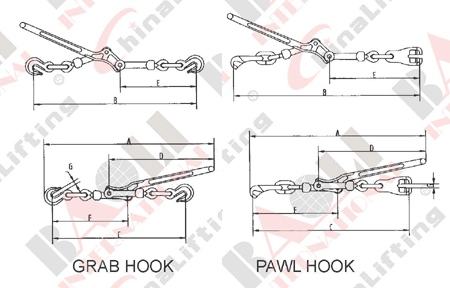

| ITEMNO | Min-MaxChain Size | W.L.L. | ProofLoad | Min.Ultimate Load | Weight/Each | HandleLength | Dimensions | ||||||
in. | |||||||||||||
in | lbs | lbs | lbs | lbs | in | A | B | C | D | E | F | G | |
| 01362 | 1/4-5/16 | 2200 | 4400 | 7800 | 3.52 | 11.42 | 18.5 | 17.3 | 14.17 | 11.42 | 8.27 | 8.07 | 0.35 |
| 01363 | 5/16-3/8 | 5400 | 10800 | 19000 | 8.37 | 15.43 | 25.2 | 23.2 | 19.49 | 15.55 | 11.22 | 11.22 | 0.51 |
| 01364 | 3/8-1/2 | 9200 | 18400 | 28000 | 12.11 | 17.24 | 28.5 | 26.38 | 22.05 | 17.64 | 12.99 | 12.20 | 0.59 |
| 01365 | 1/2-5/8 | 11000 | 22000 | 44000 | 19.7 | 21.00 | 33.86 | 30.12 | 25.78 | 20.87 | 14.37 | 14.37 | 0.74 |
| LEVER TYPE LOAD BINDER WITH PAWL HOOK | |||||||||||||
| ITEMNO | Min-Max Chain Size | W.L.L. | Proof Load | Min. Ultimate Load | Weight /Each | Handle Length | Dimensions | ||||||
in. | |||||||||||||
in | lbs | lbs | lbs | lbs | in | A | B | C | D | E | F | G | |
| 01362A | 1/4-5/16 | 2200 | 4400 | 7800 | 3.60 | 11.42 | 20.66 | 18.70 | 15.35 | 11.42 | 8.85 | 8.85 | 0.35 |
| 01363A | 5/16-3/8 | 5400 | 10800 | 19000 | 8.56 | 15.43 | 25.2 | 25.2 | 21.46 | 15.55 | 12.20 | 12.20 | 0.47 |
| 01364A | 3/8-1/2 | 9200 | 184000 | 28000 | 12.38 | 17.24 | 28.15 | 28.70 | 24.61 | 17.52 | 13.58 | 13.58 | 0.59 |
