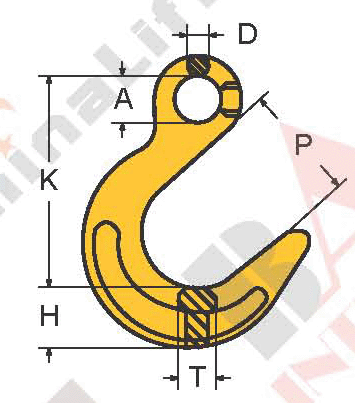

G80 FOUNDRY EYE HOOK Admin Edit
ITEM NO | SIZE | WLL | A | D | P | K | H | T | N.W. |
mm | (T) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (KG) | |
25231 | 7/8-8 | 2 | 18 | 12 | 63.5 | 120 | 31 | 25 | 1.09 |
25232 | 10-8 | 3.15 | 22 | 16 | 76 | 146 | 33 | 32 | 1.95 |
25233 | 13-8 | 5.3 | 27 | 19 | 89 | 175 | 44.5 | 38 | 3.22 |
25234 | 16-8 | 8 | 32 | 20 | 101 | 205 | 51.5 | 46 | 5.26 |
25235 | 20-8 | 12.5 | 38 | 25 | 114 | 235 | 65 | 56 | 9.07 |
25236 | 22-8 | 15 | 45 | 28.5 | 127 | 264 | 68.5 | 57 | 11.79 |
