ENDLESS CABLE 17358 17359 17360 17361 17362 17363 17364 Admin Edit
Item No. | Diameter | Nominal | Min. | |||

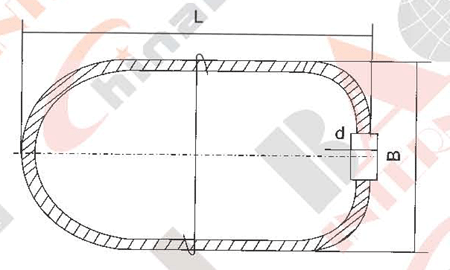

Tensile Strength | Breaking | d | B | L | ||
(mm) | (Mpa) | Load(KN) | (mm) | (mm) | (mm) | |
17351 | 7*19S-6 | 1770 | 22.6 | 6 | 114 | 205 |
17352 | 7*19S-7 | 1770 | 30.8 | 8 | 127.3 | 229 |
17353 | 7*19S-8 | 1770 | 40.3 | 8 | 139.1 | 250 |
17354 | 7*19S-9 | 1770 | 51 | 9 | 166.8 | 300 |
17355 | 7*19S-10 | 1770 | 63 | 10 | 181.3 | 326 |
17356 | 7*19S-12 | 1770 | 90.7 | 12 | 205.8 | 370 |
17357 | 7*19S-14 | 1770 | 114 | 14 | 254.7 | 458 |
17358 | 7*19S-16 | 1770 | 149 | 16 | 278.2 | 500.2 |
17359 | 7*19S-18 | 1770 | 189 | 18 | 333.7 | 600 |
17360 | 7*37S-20 | 1670 | 213 | 20 | 362.6 | 652 |
17361 | 7*37S-22 | 1670 | 257 | 22 | 376.6 | 687.5 |
17362 | 7*37S-26 | 1670 | 360 | 26 | 452 | 812.8 |
17363 | 7*37S-28 | 1670 | 417 | 28 | 486.8 | 875.3 |
17364 | 7*37S-32 | 1670 | 545 | 32 | 556.3 | 1000.4 |
USAGE: Endless cables are widely used in lifting cement board for building construction.
NOTE: The cables above can be manufactured by 6x19, 6x24, 6 x 37 steel wire rope. We can produce according to customers specifications including the material, dimension and packing.
